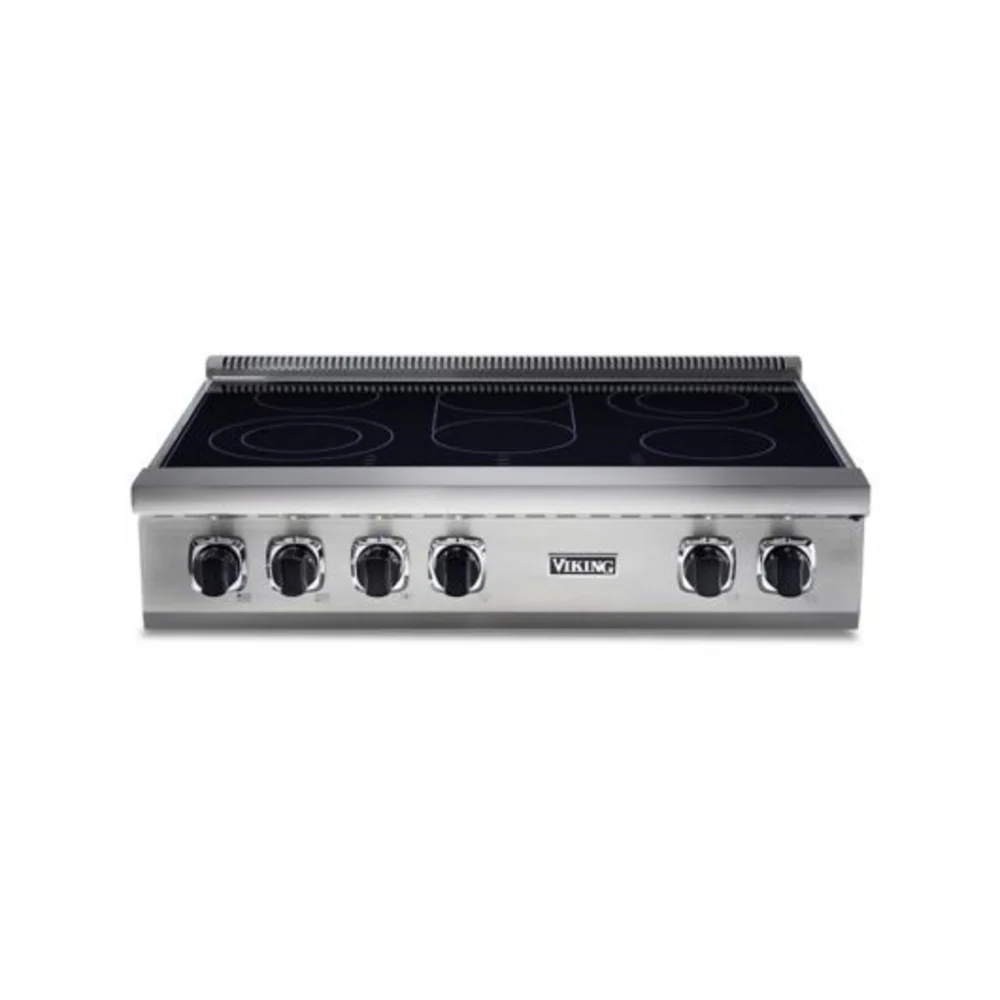

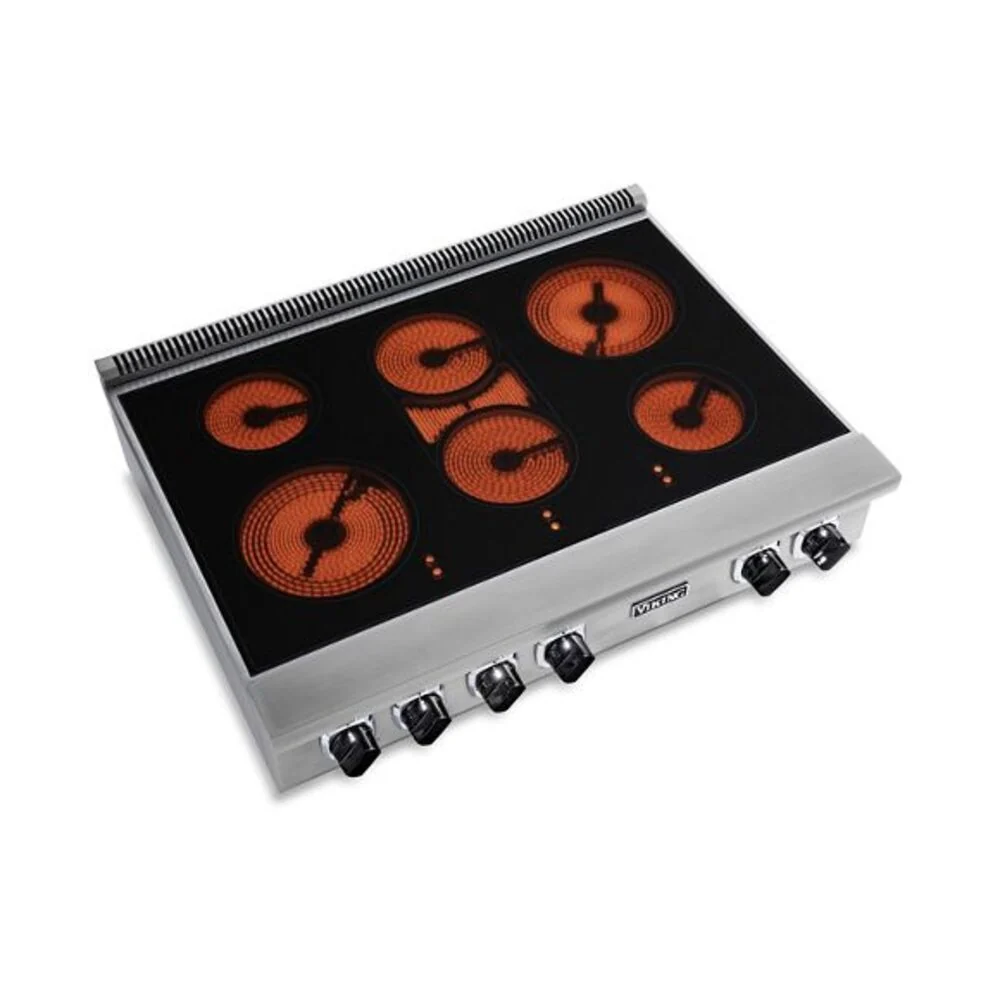

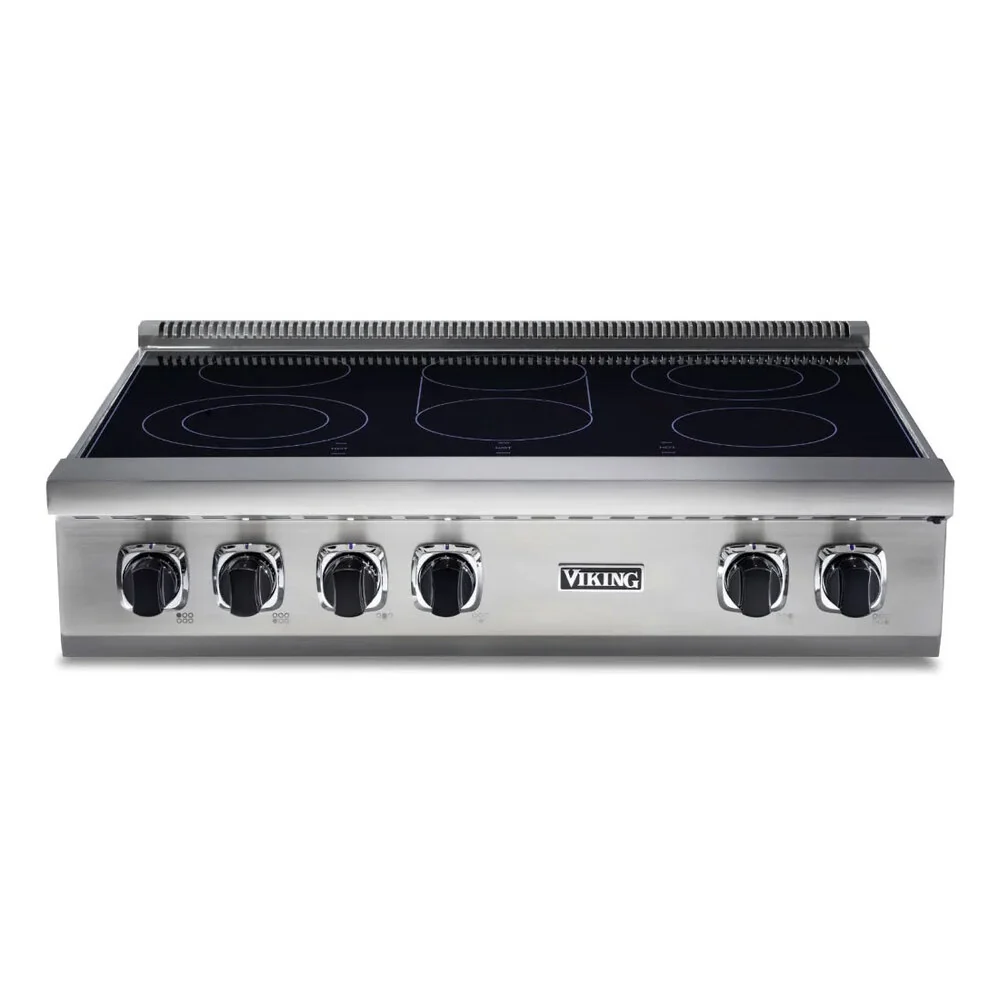

Viking 5 Series 36 inch Electric Rangetop with 6 Elements - VERT53616BSS

Features

QuickCook Surface Elements

Feature innovative ribbon technology that allows them to reach full power in just three seconds.

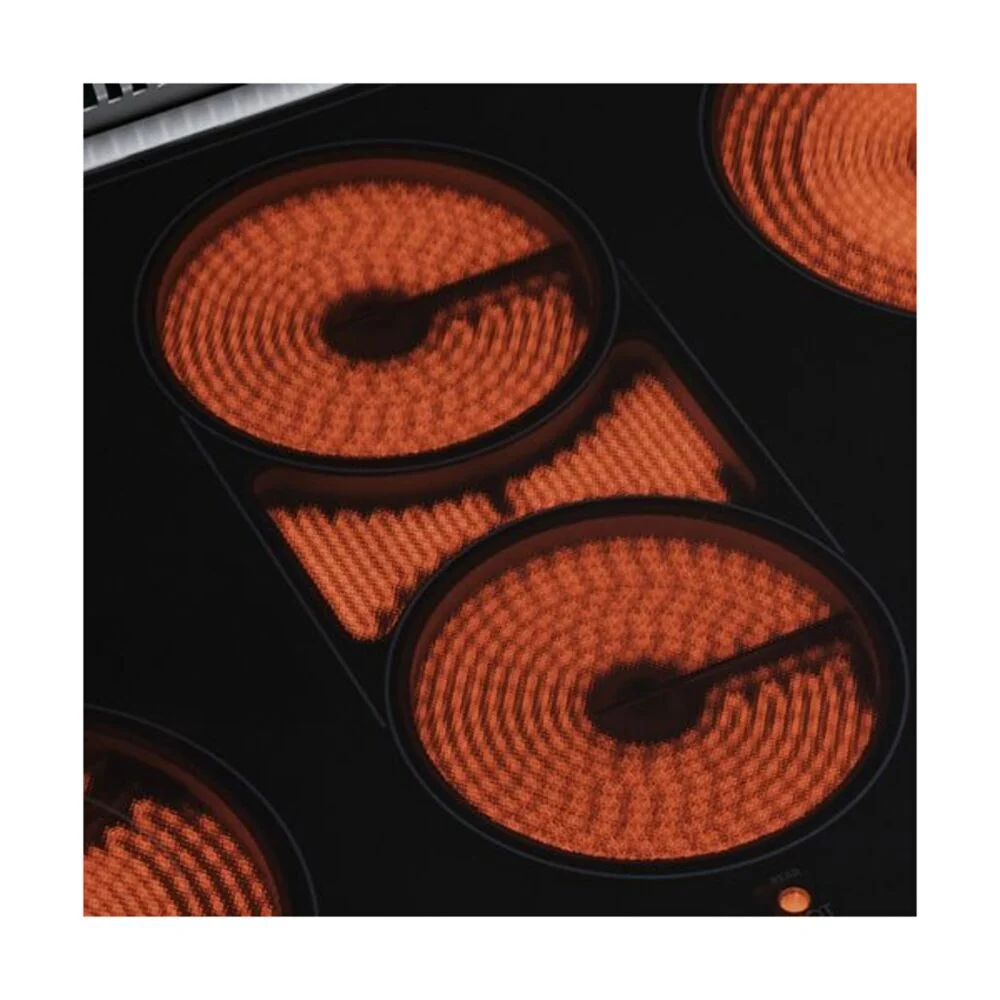

800-Watt “Bridge” Element

Located between the center front and center rear elements, excellent for griddling with an optional accessory.

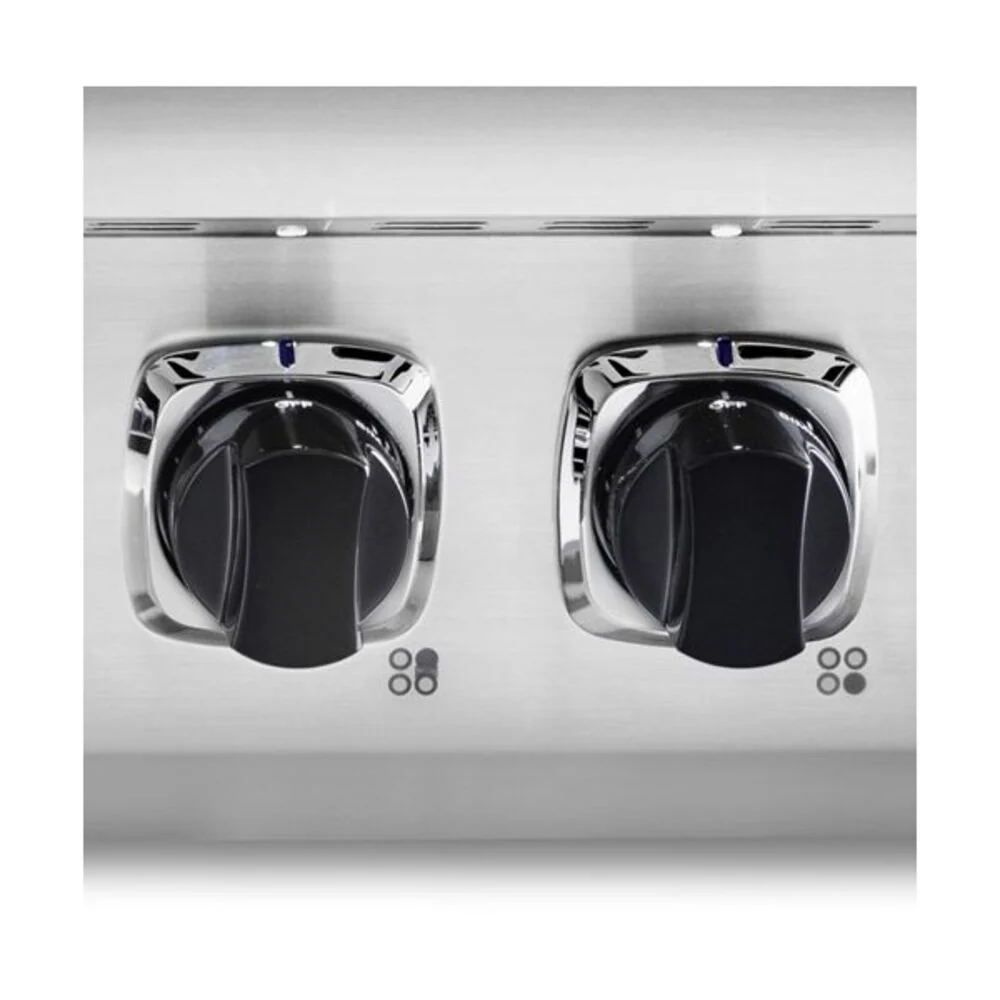

SoftLit LED lights

Enhance the control panel’s appearance and provide illumination for the knobs, adding a stylish touch to your cooking area.

High Infrared Transmission

Ensures fast and efficient surface cooking, regardless of the type of cookware used.

Wide Range of Surface Elements and Wattages

Offers a variety of element sizes and power levels for versatile cooking options.

Additional Features:

• Right front – 7” 1,800-watt element
• Right rear – 7” 1,800-watt element
• 800-watt “bridge” element between right front and right rear elements; excellent for use in conjunction with both right elements for griddling with optional accessory
• Left front – 6 1/2” 1,500-watt element
• Left rear (dual element) – 9” 3,000-watt element/6” 1,400-watt element

Specifications

Brand	Viking
Appliance Category	Cooktop
Appearance
Color	Stainless Steel
Color Family	Stainless Steel
Design Style	Pro Style
Dimensions
Exterior Width	36"
Width	35 7/8"
Depth	28 3/16"
Height	8 1/8"
Cutout Width	36"
Cutout Height	7 1/2"
Cutout Depth	24"
Fuel Type
Fuel Type	Electric
Style
Type	Rangetop
Pro-Style	Yes
Control Location	Front
Cooking Surface
Burner/Element Type	Radiant Element
Number of Burners/Elements	6
Grill	No
Griddle	No
French Top	No
Highest Element Output	3000 Watts
Burner/Element Output N1	1500 Watts
Burner/Element Output N2	3000 Watts
Burner/Element Output N3	3000 Watts
Burner/Element Output N4	1500 Watts
Burner/Element Output N5	1800 Watts
Burner/Element Output N6	1800 Watts
Hot Surface Indicator Light	Yes
Technical Details
Voltage	240
Amps	49.2
Features
Control Type	Knobs
