Osburn Matrix 1900 Wood Insert - OB01900

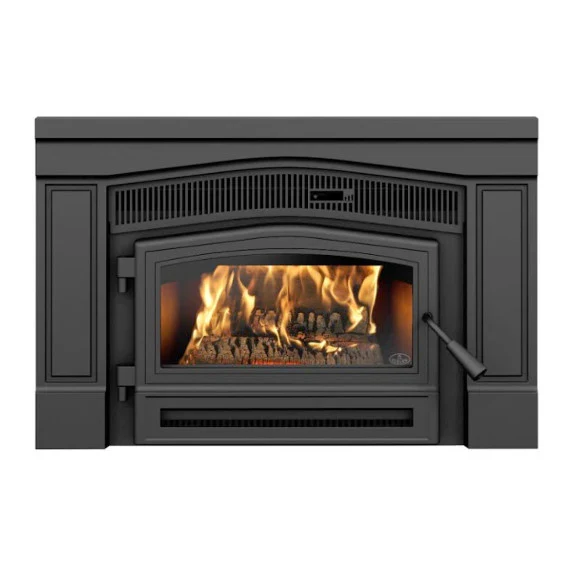

Treat your family to incomparable comfort with the Matrix 1900 wood-burning insert. Its magnificent cast-iron faceplate is adorned with a patterned upper louver and columns that frame its large door. Its discreet black wooden handle, air control with removable handle as well as flush mount blower disappear to leave room for the delicate details of its faceplate. Its large glass surface highlights a panoramic view of the flames to fully enjoy your moments near the fire.
The Matrix 1900 is a compact unit that has tapered top and sides for easy installation in smaller hearths. The deep bottom of its combustion chamber allows ash to accumulate and reduces the frequency of cleaning.
Appliance Performance
| Fuel type | Dry cordwood (16" recommended) | |
| Recommended heating area-ft² | 250 - 1,200 | |
| Overall firebox volume-ft | 1.1 | |
| EPA loading volume-ft | 1.03 | |
| Maximum burn time | 7 h | |
| Maximum heat output-dry cordwood | 45,000 BTU/h (13.19 kW) | |
| Overall heat output rate | 8,471 BTU/h (2.48 kW) to 31,700 BTU/h (9.29 kW) | |
| Average overall efficiency (dry cordwood) | 75 % (HHV) | 80 % (LHV) |
| Optimum overall efficiency | 82 % | |
| Optimum heat transfer efficiency | 78 % | |
| Average particulate emissions rate | 1.5 g/h | |
| Average CO | 34 g/h | |
Specifications
| Overall dimension (Height) | 23 7/8" |
| Overall dimension (Width) | 36" |
| Overall dimension (Depth) | 21" |
| Door opening dimension (Height) | 7 7/8" |
| Door opening - dimension (Width) | 18 1/4" |
| Firebox dimension (Height) | 8 7/8" |
| Firebox dimension (Width) | 16 3/4" |
| Firebox dimension (Depth) | 12 3/8" |
Manuals
- Safety Notifications & General InformationÂ
- Insert install & Owners Manual
- Dimensions
Original: $2,899.00
-65%$2,899.00
$1,014.65More Images
